Products Description

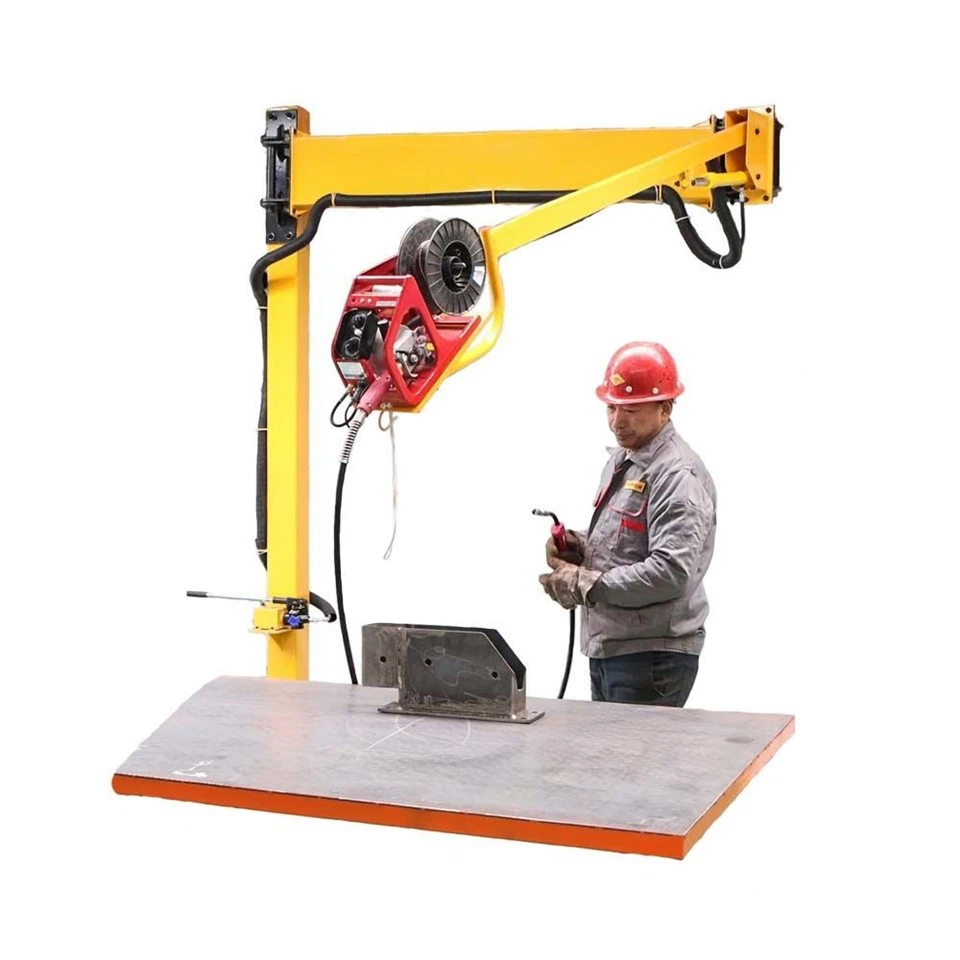

The purpose of the Wire Feeder Space Arm Wire Feeder Space Arm is to mount the dispersed wire feeder, cable, wire feeding hose, gas pipe, and other components on the cross arm.
It operates in the air rather than on the ground and is able to remain and function smoothly within the three-dimensional space within the welding range specified by the user during the welding process.
Customer Case
Certificate
| Parameter | Details |
|---|---|
| Model | SPH-805 manual hydraulic |
| Material | Q235 iron |
| Cross arm length | 8.1 m - 3 m (forearm) + 0.4 m (middle arm) + 4.7m (rear arm) |
| Horizontal rotation angle of rear arm | 180° |
| Horizontal rotation angle of the middle arm | 320° |
| Forearm horizontal rotation angle | 180° |
| Forearm depression angle | 25° |

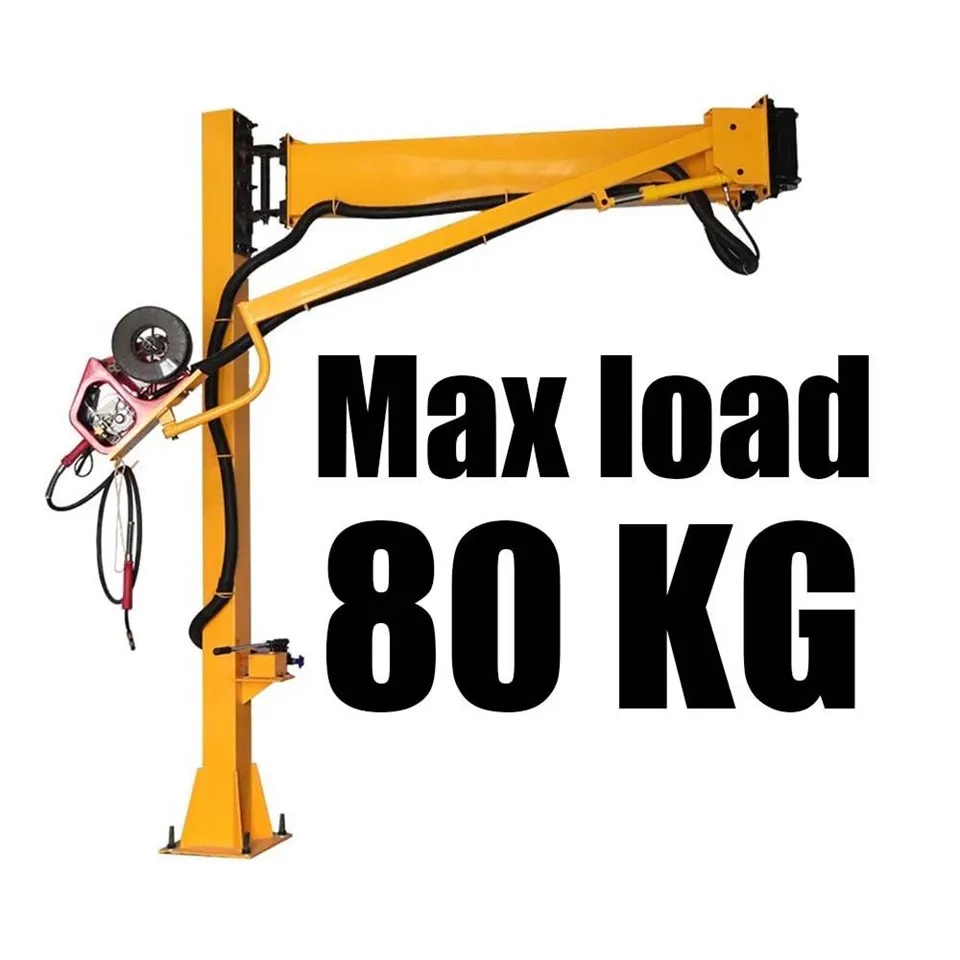

| Bearing capacity of the front end of the cross arm | About 120KG (including counterweight) |
| Lifting stroke | 2.8 meters |
